Maxwell Input File

Input file variable description

Calculation mode and parallelization strategy

At the beginning of the input file, the basic variable CalculationMode selects the run mode of Octopus and has to be set always. In case of a parallel run, there are some variables to set the proper parallelization options. For Maxwell propagations, parallelization in domains is possible, but parallelization in states is not needed, as there are always 3 or 6 states, depending on the Hamiltonian (see below).

CalculationMode = td

Multisystem setup

The Maxwell system is implemented as part of the Octopus multisystem. This allows to calculate several different systems, which can interact with each other.

Currently implemented system types are:

• electronic: An electronic system. (only partly implemented)
• maxwell: A maxwell system.
• classical_particle: A classical particle. Used for testing purposes only.
• charged_particle: A charged classical particle.
• multisystem: A container system containing other systems.
• dftbplus: A DFTB+ system
• linear_medium: A (static) linear medium for classical electrodynamics.
• dispersive_medium: A (dispersive) linear medium (only the Drude model is currently implemented)

Definition of the systems

In this tutorial, we will use a pure Maxwell system:

ExperimentalFeatures = yes
%Systems
  'Maxwell' | maxwell
%

Subsequently, variables relating to a named system are prefixed by the system name. However, this prefix is not mandatory for calculations considering only one system.

Maxwell box variables and parameters

Simulation box

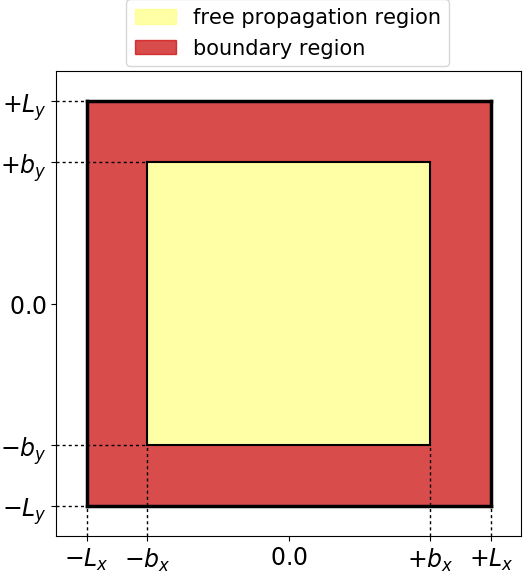

The Maxwell simulation box is of parallelepiped shape, and is divided into mainly two regions: one inner region for the requested propagation and an outer region to simulate the proper boundary conditions. In the input file, the simulation box sizes refer to the total simulation box which includes the boundary region. The inner simulation box is defined by the total box size minus the boundary width. In case of zero boundary condition, there is no boundary region.

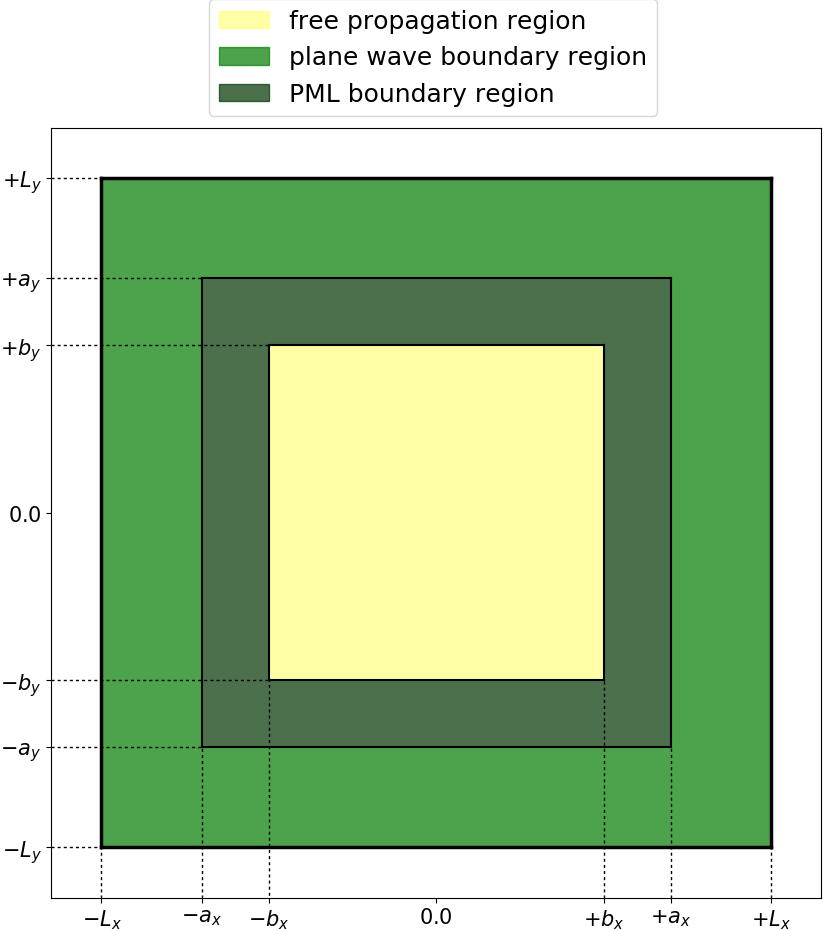

The boundary region can be set up by absorbing boundaries, incident plane waves or a combination of both. In the latter case, the absorbing boundary region is the inner boundary region, and the plane waves region is the outer boundary region. Again, the box sizes are determined by the total simulation box size and the corresponding boundary width.

Maxwell options

First, the Maxwell propagation operator options consist of the type of MaxwellHamiltonianOperator, which normally will be a Maxwell Hamiltonian for propagation in vacuum (faraday_ampere). This options is also used for dispersive media. For linear (static) media, one should set the Maxwell-Hamiltonian that works for a linear medium (faraday_ampere_medium).

Currently, the Maxwell system does not define its own propagator, but uses the system default propagator, defined in TDSystemPropagator. So far, the exponential midpoint and a leapfrog scheme are implemented (see below).

The Maxwell Boundary conditions can be chosen for each direction differently with MaxwellBoundaryConditions. Possible choices are zero, plane waves and constant field boundary conditions. Additionally to the boundary condition, the code can include absorbing boundaries. This means that all outgoing waves are absorbed while all incoming signals still arise at the boundaries and propagate into the simulation box. The absorbing boundaries can be achieved by a mask function or by a perfectly matched layer (PML) calculation with additional parameters. For more information on the physical meaning of these parameters, please refer to the Maxwell-TDDFT paper.

MaxwellHamiltonianOperator = faraday_ampere

# Boundary conditions for each dimension (zero, constant or plane waves)
%MaxwellBoundaryConditions
plane_waves | plane_waves | plane_waves
%


# Absorbing boundaries option (not absorbing, mask or CPML)s
%MaxwellAbsorbingBoundaries
cpml | cpml | cpml
%

# Absorbing boundary width for the mask or CPML boundaries
MaxwellABWidth = 5.0

# Parameters to tune the Maxwell PML (they have safe defaults)
MaxwellABPMLPower = 2.0
MaxwellABPMLReflectionError = 1e-16

Output options

The output option OutputFormat can be used exactly as in the case of TDDFT calculations, with the exception that some formats are inconsistent with a Maxwell calculation (like xyz). It is possible to chose multiple formats. The Maxwell output options are defined in the MaxwellOutput block (written to output_iter every MaxwellOutputInterval steps) and through the MaxwellTDOutput (written to td.general every step).

# Full space-resolved outputs, to be written to the Maxwell/output_iter folder,
# every MaxwellOutputInterval steps (Check variable documentation for full list of possible options)
%MaxwellOutput
  electric_field | axis_z
  magnetic_field | plane_x
%

MaxwellOutputInterval = 10

# Output of the scalar Maxwell variables for each time step, written into the td.general folder
# (the fields are evaluated at all MaxwellFieldsCoordinate points)
MaxwellTDOutput = maxwell_energy + maxwell_total_e_field

# Coordinates of the grid points, which corresponding electromagnetic field values are
# written into td.general/maxwell_fields
%MaxwellFieldsCoordinate
0.00 | 0.00 | 0.00
1.00 | 0.00 | 1.00
%

Time step variables

The TDTimeStep option in general defines the time step used for each system. For the stability of the time propagation, Maxwell systems need to fulfill the Courant condition. In some cases larger time steps are possible but this should be checked case by case.

TDSystemPropagator = exp_mid

# TDTimeStep should be equal or smaller than the Courant criterion, which is here
# S_Courant = 1 / (sqrt(c^2/dx_mx^2 + c^2/dx_mx^2 + c^2/dx_mx^2))
TDTimeStep = 0.002

# Total simulation time
TDPropagationTime = 0.4

Maxwell field variables

The incident plane waves can be defined at the boundaries using the MaxwellIncidentWaves block. This block defines the incoming wave type and complex electric field amplitude, and an envelope function name, which must be defined in a separate MaxwellFunctions block. Multiple plane waves can be defined, and their superposition gives the final incident wave result at the boundary. This plane waves boundaries are evaluated at each time step, and give the boundary conditions for the propagation inside the box. To use them MaxwellBoundaryConditions must be set to “plane_waves” in the proper directions.

The MaxwellFunctions block reads the additional required information for the plane wave pulse, for each envelope function name given in the MaxwellIncidentWaves block.

Inside the simulation box, the initial electromagnetic field is set up by the UserDefinedInitialMaxwellStates block. If the pulse parameters are such that it is completely outside the box at the initial time, this variables does not need to be set, as the default initial field inside the box is zero.

In case of MaxwellPlaneWavesInBox = yes, no Maxwell propagation is done, but instead the field is set analytically at each time step using the parameters defined in MaxwellIncidentWaves.

# ----- Maxwell field variables -----------------------------------------------------------------

# Plane waves input block
%MaxwellIncidentWaves
plane_wave_mx_function | Ex1 | Ey1 | Ez1 | "plane_waves_func_1"
%

# Predefined envelope function
%MaxwellFunctions
"plane_waves_func_1" | mxf_cosinoidal_wave | kx1 | ky1 | kz1 | psx1 | psy1 | psz1 | pw1
%

# Definition of the initial EM field inside the box:
# (can be an arbitrary formula, from a file, or using the info from the MaxwellIncidentWaves block)
%UserDefinedInitialMaxwellStates
  use_incident_waves
%

# If incident plane waves should be evaluated analytically inside the simulation box
# (disabling Maxwell propagation, only direct evaluation)
MaxwellPlaneWavesInBox = no

External current

An external current can be added to the internal current. Its spatial and temporal profile are analytical, and the formulas are defined by the UserDefinedMaxwellExternalCurrent block. This block defines the spatial profile and frequency of each current source, and it sets an envelope function name, that must be defined in a separate TDFunctions block.

# Switch on external current density
ExternalCurrent = yes

# External current profile parameters (spatial profile formulas, frequency and envelope function name)
%UserDefinedMaxwellExternalCurrent
current_td_function | "jx(x.y,z)" | "jy(x,y,z)" | "jz(x,y,z)" | omega | "env_func"
%

# Envelope function in time for the external current density
%TDFunctions
"env_func” | tdf_gaussian | 1.0 | tw | t0
%

Linear Medium

Different shapes of dispersive and non-dispersive linear media can be included in the calculation either through a pre-defined box shape (parallelepiped, sphere or cylinder), or through a file describing more complex geometries. For more information check the Linear Medium tutorial.

Propagators

The default propagator is an exponential midpoint scheme, as described in the Maxwell-TDDFT paper; it is selected using TDSystemPropagator = prop_expmid.

In addition, a leapfrog propagator is available that is selected with TDSystemPropagator = prop_leapfrog. It uses a simpler scheme for the PML and linear media. Let us write Maxwell’s equations in Riemann-Silberstein formulation as $$ \partial_t \vec{F}(\vec{r}, t) = H(\vec{F}(\vec{r}, t), t), $$ with the right-hand side $H$ given by $$ H(\vec{F}(\vec{r}, t), t) = -i c \nabla \times \vec{F}(\vec{r}, t) - \frac{1}{\sqrt{2\epsilon}} \vec{J}(\vec{r}, t). $$ For non-constant permeabilities and permittivities, extra terms appear that need to be taken into account.

The leapfrog scheme now discretizes the time derivative with a central finite difference in time: $$ \vec{F}(\vec{r}{jkl}, t{n+1}) = \vec{F}(\vec{r}{jkl}, t{n-1}) + 2\Delta t H(\vec{F}(\vec{r}{jkl}, t_n), t_n), $$ which is a two-level scheme as it depends on the state of the system at the previous time $t{n-1}$ ($\vec{r}_{jkl}$ is the discretized space coordinate). Thus, it requires an additional storage of that Riemann-Silberstein vector. As this is not available in the first time step, we do a simple forward Euler step; this approach keeps the scheme accurate to second order.

The leapfrog scheme is stable for purely imaginary eigenvalues of the amplification matrix, thus it cannot be used for linear media with non-zero conductivities or for Drude media. In these cases, the terms linear in the fields introduce eigenvalues with negative real parts.

The stability criterion for the timestep for this scheme is $$ \Delta t \leq \frac{1}{c \text{max}|\eta|} \left( \sum_{j=1}^3 \frac{1}{\Delta x_j^2} \right)^{-\frac{1}{2}} $$ where $\text{max}|\eta|$ is determined by the Fourier transform of the finite difference stencil for the first derivatives used in the curl. For the default 8th-order finite differences in Octopus, its value is 1.7306.

In the leapfrog scheme, the curl operation is applied only once which makes it faster than the exponential midpoint. However, it is only second order in time and thus the error from time integration can be larger.
