minimizer_algorithm_oct_m::minimizer_algorithm_t Type Reference

Abstract class implementing minimizers. More...

Detailed Description

Abstract class implementing minimizers.

Minimizers are implemented as a state machine. This abstract class defines the steps which are independent of the actual minimization algorithm, and also independent of the system, to which is is applied.

Definition at line 137 of file minimizer_algorithm.F90.

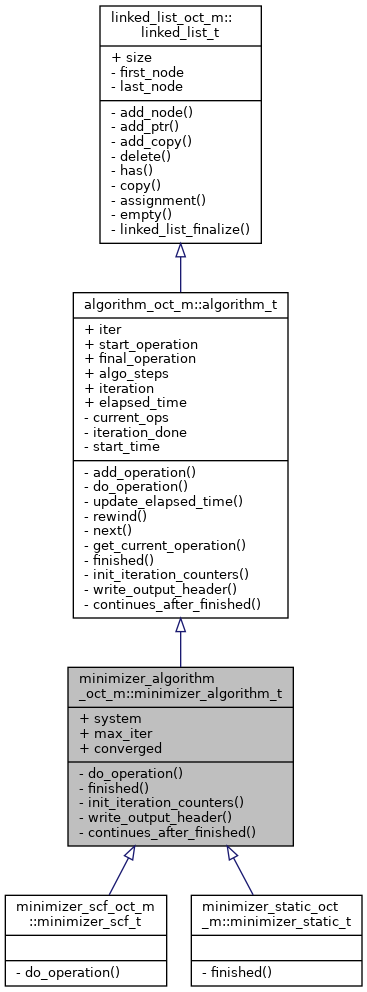

Inheritance diagram for minimizer_algorithm_oct_m::minimizer_algorithm_t:

Public Attributes
class(system_t), pointer, public	system
	The system using this minimizer. More...
integer, public	max_iter
	Maximum number of iterations for self-consistent minimizers. More...
logical, public	converged = .false.
Public Attributes inherited from algorithm_oct_m::algorithm_t
type(algorithm_iterator_t), public	iter
	Iterator for algorithmic operations. More...
type(algorithmic_operation_t), public	start_operation
	algorithm specific initialization operation; More...
type(algorithmic_operation_t), public	final_operation
	algorithm specific finalization operation More...
integer, public	algo_steps
	Number of 'algorithmic steps' per algorithmic iteration. More...
type(iteration_counter_t), public	iteration
	Keep track at which iteration this algorithm is. More...
real(real64), public	elapsed_time = M_ZERO
	Elapsed wall clock time for printing info. More...
Public Attributes inherited from linked_list_oct_m::linked_list_t
integer, public	size = 0

Private Member Functions
procedure	do_operation => minimizer_algorithm_do_operation
	Try to perform one operation of the algorithm. Return .true. if sucessful. More...
procedure	finished => minimizer_algorithm_finished
	indicate whether a minimizer has reached the final time More...
procedure	init_iteration_counters => minimizer_algorithm_init_iteration_counters
	Initialize the minimizer and system clocks. More...
procedure	write_output_header => minimizer_algorithm_write_output_header
procedure	continues_after_finished => minimizer_continues_after_finished

Member Function/Subroutine Documentation

do_operation()

procedure minimizer_algorithm_oct_m::minimizer_algorithm_t::do_operation

private

Try to perform one operation of the algorithm. Return .true. if sucessful.

Definition at line 144 of file minimizer_algorithm.F90.

finished()

procedure minimizer_algorithm_oct_m::minimizer_algorithm_t::finished

private

indicate whether a minimizer has reached the final time

Definition at line 145 of file minimizer_algorithm.F90.

init_iteration_counters()

procedure minimizer_algorithm_oct_m::minimizer_algorithm_t::init_iteration_counters

private

Initialize the minimizer and system clocks.

Note that we initialize the system clock here because it requires knowledge of the time-step.

Definition at line 146 of file minimizer_algorithm.F90.

write_output_header()

procedure minimizer_algorithm_oct_m::minimizer_algorithm_t::write_output_header

private

Definition at line 147 of file minimizer_algorithm.F90.

continues_after_finished()

procedure minimizer_algorithm_oct_m::minimizer_algorithm_t::continues_after_finished

private

Definition at line 148 of file minimizer_algorithm.F90.

Member Data Documentation

system

class(system_t), pointer, public minimizer_algorithm_oct_m::minimizer_algorithm_t::system

The system using this minimizer.

Definition at line 139 of file minimizer_algorithm.F90.

max_iter

integer, public minimizer_algorithm_oct_m::minimizer_algorithm_t::max_iter

Maximum number of iterations for self-consistent minimizers.

Definition at line 140 of file minimizer_algorithm.F90.

converged

logical, public minimizer_algorithm_oct_m::minimizer_algorithm_t::converged = .false.

Definition at line 141 of file minimizer_algorithm.F90.

---

The documentation for this type was generated from the following file:

• multisystem/minimizer_algorithm.F90
