charged_particle_oct_m::charged_particle_t Interface Reference

class for a charged classical particle More...

Detailed Description

class for a charged classical particle

Definition at line 143 of file charged_particle.F90.

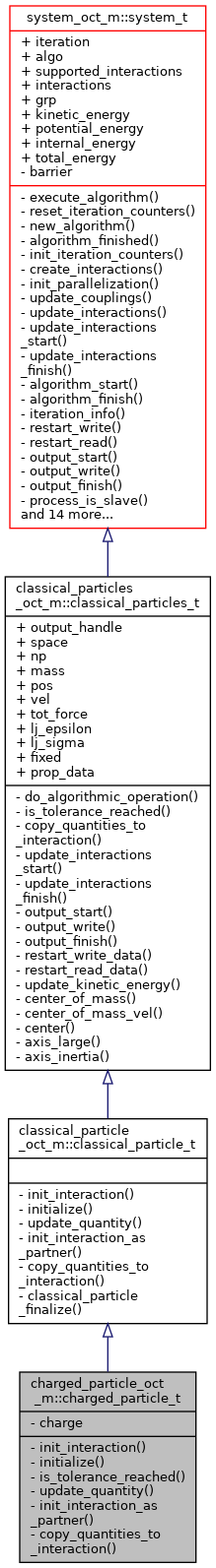

Inheritance diagram for charged_particle_oct_m::charged_particle_t:

Private Member Functions
procedure	init_interaction => charged_particle_init_interaction
procedure	initial_conditions => charged_particle_initial_conditions
procedure	is_tolerance_reached => charged_particle_is_tolerance_reached
procedure	update_quantity => charged_particle_update_quantity
procedure	init_interaction_as_partner => charged_particle_init_interaction_as_partner
procedure	copy_quantities_to_interaction => charged_particle_copy_quantities_to_interaction

Private Attributes
real(real64), dimension(1)	charge

Additional Inherited Members
Public Attributes inherited from classical_particles_oct_m::classical_particles_t
type(c_ptr), dimension(2), public	output_handle
type(space_t), public	space
	Dimensions of physical space. More...
integer, public	np
	Number of particles in the system. More...
real(real64), dimension(:), allocatable, public	mass
	Mass of the particles. More...
real(real64), dimension(:,:), allocatable, public	pos
	Position of the particles. More...
real(real64), dimension(:,:), allocatable, public	vel
	Velocity of the particles. More...
real(real64), dimension(:,:), allocatable, public	tot_force
	Total force acting on each particle. More...
real(real64), dimension(:), allocatable, public	lj_epsilon
	Lennard-Jones epsilon. More...
real(real64), dimension(:), allocatable, public	lj_sigma
	Lennard-Jones sigma. More...
logical, dimension(:), allocatable, public	fixed
	True if a giving particle is to be kept fixed during a propagation. The default is to let the particles move. More...
type(propagator_data_t), public	prop_data
Public Attributes inherited from system_oct_m::system_t
type(iteration_counter_t), public	iteration
class(algorithm_t), pointer, public	algo => null()
integer, dimension(:), allocatable, public	supported_interactions
type(interaction_list_t), public	interactions
	List with all the interactions of this system. More...
type(mpi_grp_t), public	grp
	mpi group for this system More...
real(real64), public	kinetic_energy
	Energy not from interactions, like the kinetic energy. More...
real(real64), public	potential_energy
	Energy from the interactions with external systems. More...
real(real64), public	internal_energy
	Energy from the interactions with itself and for containers the kinetic energy of its constituents. More...
real(real64), public	total_energy
	Sum of internal, external, and self energy. More...
Public Attributes inherited from interaction_partner_oct_m::interaction_partner_t
type(namespace_t), public	namespace
integer, dimension(:), allocatable, public	supported_interactions_as_partner
	list of interactions, which support this interaction_partner_t as partner More...
type(quantity_t), dimension(max_quantities), public	quantities
	Array of all possible quantities. The elements of the array are accessed using the quantity`s identifiers. More...

Member Function/Subroutine Documentation

init_interaction()

procedure charged_particle_oct_m::charged_particle_t::init_interaction

private

Implements classical_particle_oct_m::classical_particle_t.

Definition at line 153 of file charged_particle.F90.

initial_conditions()

procedure charged_particle_oct_m::charged_particle_t::initial_conditions

private

Implements classical_particle_oct_m::classical_particle_t.

Definition at line 154 of file charged_particle.F90.

is_tolerance_reached()

procedure charged_particle_oct_m::charged_particle_t::is_tolerance_reached

private

Definition at line 155 of file charged_particle.F90.

update_quantity()

procedure charged_particle_oct_m::charged_particle_t::update_quantity

private

Implements classical_particle_oct_m::classical_particle_t.

Definition at line 156 of file charged_particle.F90.

init_interaction_as_partner()

procedure charged_particle_oct_m::charged_particle_t::init_interaction_as_partner

private

Implements classical_particle_oct_m::classical_particle_t.

Definition at line 157 of file charged_particle.F90.

copy_quantities_to_interaction()

procedure charged_particle_oct_m::charged_particle_t::copy_quantities_to_interaction

private

Implements classical_particle_oct_m::classical_particle_t.

Definition at line 158 of file charged_particle.F90.

Member Data Documentation

charge

real(real64), dimension(1) charged_particle_oct_m::charged_particle_t::charge

private

Definition at line 150 of file charged_particle.F90.

---

The documentation for this interface was generated from the following file:

• classical/charged_particle.F90
