coulomb_force_oct_m::coulomb_force_t Interface Reference

Coulomb interaction between two systems of particles. More...

Detailed Description

Coulomb interaction between two systems of particles.

Definition at line 132 of file coulomb_force.F90.

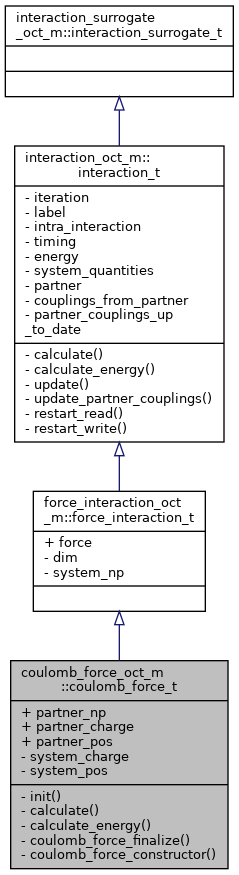

Inheritance diagram for coulomb_force_oct_m::coulomb_force_t:

Public Attributes
integer, public	partner_np = 0
	number of particles in the partner system More...
real(real64), dimension(:), allocatable, public	partner_charge
	array storing a copy of the masses of the partner particles More...
real(real64), dimension(:,:), allocatable, public	partner_pos
	array storing a copy of the positions of the partner particles More...
Public Attributes inherited from force_interaction_oct_m::force_interaction_t
real(real64), dimension(:,:), allocatable, public	force

Private Member Functions
procedure	init => coulomb_force_init
procedure	calculate => coulomb_force_calculate
procedure	calculate_energy => coulomb_force_calculate_energy
final	coulomb_force_finalize
class(coulomb_force_t) function, pointer	coulomb_force_constructor (partner)

Private Attributes
real(real64), dimension(:), pointer	system_charge => NULL()
	pointer to array storing the charges of the particles More...
real(real64), dimension(:,:), pointer	system_pos => NULL()
	pointer to array storing the positions of the particles More...

Member Function/Subroutine Documentation

init()

procedure coulomb_force_oct_m::coulomb_force_t::init

private

Definition at line 142 of file coulomb_force.F90.

calculate()

procedure coulomb_force_oct_m::coulomb_force_t::calculate

private

Definition at line 143 of file coulomb_force.F90.

calculate_energy()

procedure coulomb_force_oct_m::coulomb_force_t::calculate_energy

private

Definition at line 144 of file coulomb_force.F90.

coulomb_force_finalize()

final coulomb_force_oct_m::coulomb_force_t::coulomb_force_finalize

finalprivate

Definition at line 145 of file coulomb_force.F90.

coulomb_force_constructor()

class(coulomb_force_t) function, pointer coulomb_force_oct_m::coulomb_force_t::coulomb_force_constructor ( class(interaction_partner_t), intent(inout), target  partner )

private

Definition at line 155 of file coulomb_force.F90.

Member Data Documentation

system_charge

real(real64), dimension(:), pointer coulomb_force_oct_m::coulomb_force_t::system_charge => NULL()

private

pointer to array storing the charges of the particles

Definition at line 134 of file coulomb_force.F90.

system_pos

real(real64), dimension(:,:), pointer coulomb_force_oct_m::coulomb_force_t::system_pos => NULL()

private

pointer to array storing the positions of the particles

Definition at line 135 of file coulomb_force.F90.

partner_np

integer, public coulomb_force_oct_m::coulomb_force_t::partner_np = 0

number of particles in the partner system

Definition at line 137 of file coulomb_force.F90.

partner_charge

real(real64), dimension(:), allocatable, public coulomb_force_oct_m::coulomb_force_t::partner_charge

array storing a copy of the masses of the partner particles

Definition at line 138 of file coulomb_force.F90.

partner_pos

real(real64), dimension(:,:), allocatable, public coulomb_force_oct_m::coulomb_force_t::partner_pos

array storing a copy of the positions of the partner particles

Definition at line 139 of file coulomb_force.F90.

---

The documentation for this interface was generated from the following file:

• interactions/coulomb_force.F90
