box_intersection_oct_m::box_intersection_t Interface Reference

Class implementing a box that is an intersection other boxes. Note that the we do not override the bounds method of multibox, although formally it returns the bounds of an union of boxes. The reason is that the proper calculation of the bounds of an intersection of boxes would be complicated and would require detailed knowleged of each box shape. Since the main purpose of the function is to create bounding boxes, using the bounds of the union of boxes is a reasonable approximation. More...

Detailed Description

Class implementing a box that is an intersection other boxes. Note that the we do not override the bounds method of multibox, although formally it returns the bounds of an union of boxes. The reason is that the proper calculation of the bounds of an intersection of boxes would be complicated and would require detailed knowleged of each box shape. Since the main purpose of the function is to create bounding boxes, using the bounds of the union of boxes is a reasonable approximation.

Definition at line 139 of file box_intersection.F90.

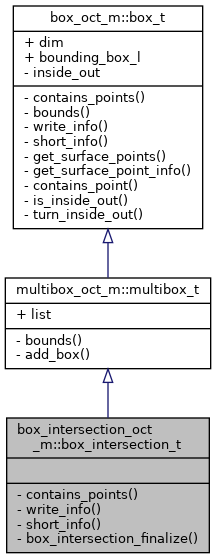

Inheritance diagram for box_intersection_oct_m::box_intersection_t:

Private Member Functions
procedure	contains_points => box_intersection_contains_points
procedure	write_info => box_intersection_write_info
procedure	short_info => box_intersection_short_info
final	box_intersection_finalize

Additional Inherited Members
Public Attributes inherited from multibox_oct_m::multibox_t
type(box_list_t), public	list
	list containing the boxes that make up this multibox More...
Public Attributes inherited from box_oct_m::box_t
integer, public	dim
	dimensions of the space the box lives in More...
real(real64), dimension(:), allocatable, public	bounding_box_l
	Half lengths of the bounding box that contains the box. Note that this box always contains the origin and is symmetrical with respect to it. More...

Member Function/Subroutine Documentation

contains_points()

procedure box_intersection_oct_m::box_intersection_t::contains_points

private

Definition at line 142 of file box_intersection.F90.

write_info()

procedure box_intersection_oct_m::box_intersection_t::write_info

private

Definition at line 143 of file box_intersection.F90.

short_info()

procedure box_intersection_oct_m::box_intersection_t::short_info

private

Definition at line 144 of file box_intersection.F90.

box_intersection_finalize()

final box_intersection_oct_m::box_intersection_t::box_intersection_finalize

finalprivate

Definition at line 145 of file box_intersection.F90.

---

The documentation for this interface was generated from the following file:

• boxes/box_intersection.F90
