field_transfer_oct_m::field_transfer_t Type Reference

class defining the field_transfer interaction More...

Detailed Description

class defining the field_transfer interaction

It contains the field from the partner (partner_field) and the one transferred to the system (system_field). Moreover, it contains data structures for regridding and time interpolation.

Definition at line 169 of file field_transfer.F90.

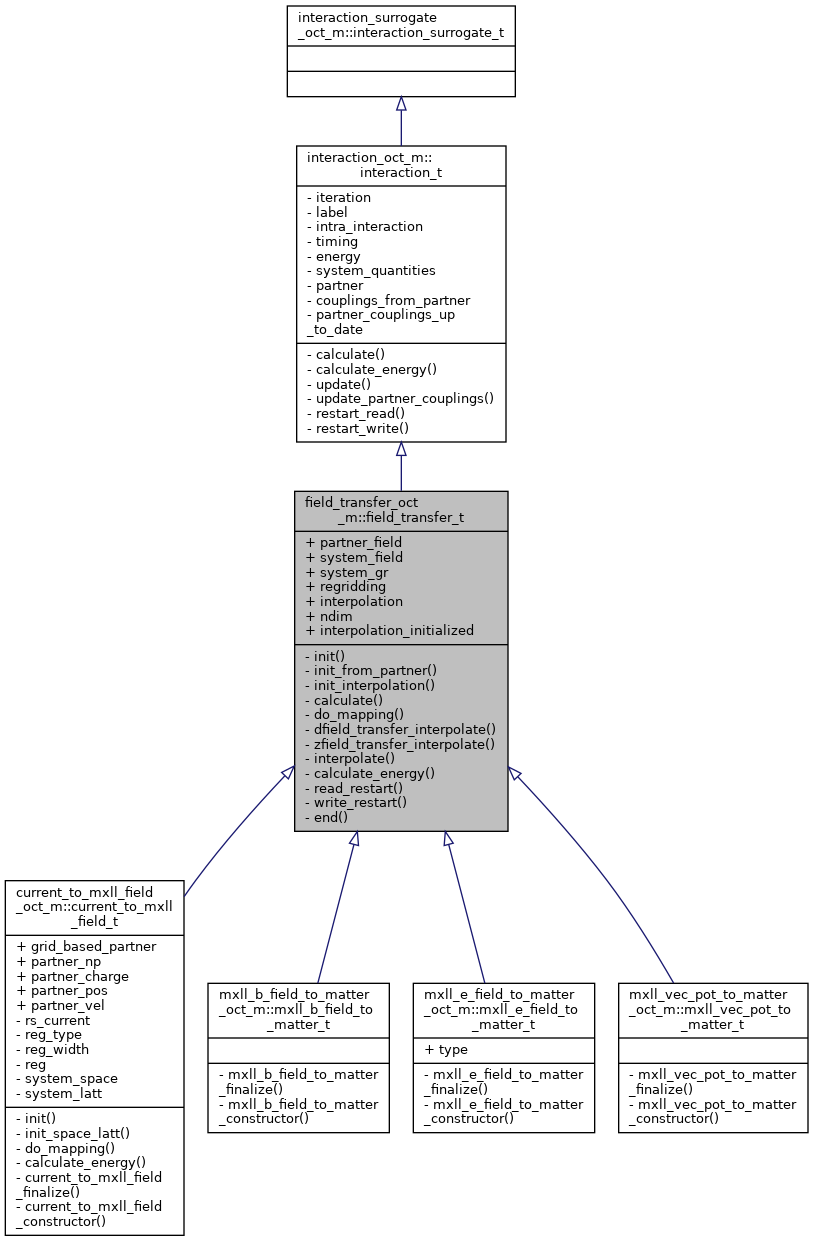

Inheritance diagram for field_transfer_oct_m::field_transfer_t:

Public Attributes
real(real64), dimension(:,:), allocatable, public	partner_field
	field from partner More...
real(real64), dimension(:,:), allocatable, public	system_field
	field transferred to system grid More...
type(grid_t), pointer, public	system_gr => NULL()
	pointer to grid of the system More...
type(regridding_t), pointer, public	regridding => NULL()
type(time_interpolation_t), pointer, public	interpolation => NULL()
integer, public	ndim
logical, public	interpolation_initialized = .false.

Private Member Functions
procedure	init => field_transfer_init
	the system field is allocated and initialized to 0 More...
procedure	init_from_partner => field_transfer_init_from_partner
	the partner field is allocated and initialized to 0; moreover the regridding structure is initialized More...
procedure	init_interpolation => field_transfer_init_interpolation
	the time interpolation is initialized; it needs to know the depth which is usually given by the order of the propagator; thus it can only be called after the propagator is known (this can be done in the system in init_algorithm) More...
procedure	calculate => field_transfer_calculate
procedure	do_mapping => field_transfer_do_mapping
	perform the regridding and add the system field to the time interpolator using the time of the quantity at this point; More...
procedure	dfield_transfer_interpolate
	zfield_transfer_interpolate
generic	interpolate => dfield_transfer_interpolate, zfield_transfer_interpolate
	return the interpolated field for a given time More...
procedure	calculate_energy => field_transfer_calculate_energy
procedure	read_restart => field_transfer_read_restart
procedure	write_restart => field_transfer_write_restart
procedure	end => field_transfer_end

Member Function/Subroutine Documentation

init()

procedure field_transfer_oct_m::field_transfer_t::init

private

the system field is allocated and initialized to 0

Definition at line 180 of file field_transfer.F90.

init_from_partner()

procedure field_transfer_oct_m::field_transfer_t::init_from_partner

private

the partner field is allocated and initialized to 0; moreover the regridding structure is initialized

Definition at line 182 of file field_transfer.F90.

init_interpolation()

procedure field_transfer_oct_m::field_transfer_t::init_interpolation

private

the time interpolation is initialized; it needs to know the depth which is usually given by the order of the propagator; thus it can only be called after the propagator is known (this can be done in the system in init_algorithm)

Definition at line 184 of file field_transfer.F90.

calculate()

procedure field_transfer_oct_m::field_transfer_t::calculate

private

Definition at line 186 of file field_transfer.F90.

do_mapping()

procedure field_transfer_oct_m::field_transfer_t::do_mapping

private

perform the regridding and add the system field to the time interpolator using the time of the quantity at this point;

it is called by the partner system when copying its data to the interaction because the system grid does not change Note: this needs an extra function call for each of the partner systems in their copy_quantities_to_interaction function

Definition at line 188 of file field_transfer.F90.

dfield_transfer_interpolate()

procedure field_transfer_oct_m::field_transfer_t::dfield_transfer_interpolate

private

Definition at line 190 of file field_transfer.F90.

zfield_transfer_interpolate()

field_transfer_oct_m::field_transfer_t::zfield_transfer_interpolate

private

Definition at line 190 of file field_transfer.F90.

interpolate()

generic field_transfer_oct_m::field_transfer_t::interpolate

private

return the interpolated field for a given time

Definition at line 191 of file field_transfer.F90.

calculate_energy()

procedure field_transfer_oct_m::field_transfer_t::calculate_energy

private

Definition at line 193 of file field_transfer.F90.

read_restart()

procedure field_transfer_oct_m::field_transfer_t::read_restart

private

Definition at line 195 of file field_transfer.F90.

write_restart()

procedure field_transfer_oct_m::field_transfer_t::write_restart

private

Definition at line 197 of file field_transfer.F90.

end()

procedure field_transfer_oct_m::field_transfer_t::end

private

Definition at line 199 of file field_transfer.F90.

Member Data Documentation

partner_field

real(real64), dimension(:,:), allocatable, public field_transfer_oct_m::field_transfer_t::partner_field

field from partner

Definition at line 171 of file field_transfer.F90.

system_field

real(real64), dimension(:,:), allocatable, public field_transfer_oct_m::field_transfer_t::system_field

field transferred to system grid

Definition at line 172 of file field_transfer.F90.

system_gr

type(grid_t), pointer, public field_transfer_oct_m::field_transfer_t::system_gr => NULL()

pointer to grid of the system

Definition at line 173 of file field_transfer.F90.

regridding

type(regridding_t), pointer, public field_transfer_oct_m::field_transfer_t::regridding => NULL()

Definition at line 174 of file field_transfer.F90.

interpolation

type(time_interpolation_t), pointer, public field_transfer_oct_m::field_transfer_t::interpolation => NULL()

Definition at line 175 of file field_transfer.F90.

ndim

integer, public field_transfer_oct_m::field_transfer_t::ndim

Definition at line 176 of file field_transfer.F90.

interpolation_initialized

logical, public field_transfer_oct_m::field_transfer_t::interpolation_initialized = .false.

Definition at line 177 of file field_transfer.F90.

---

The documentation for this type was generated from the following file:

• interactions/field_transfer.F90
