Detailed Description

Definition at line 182 of file external_waves.F90.

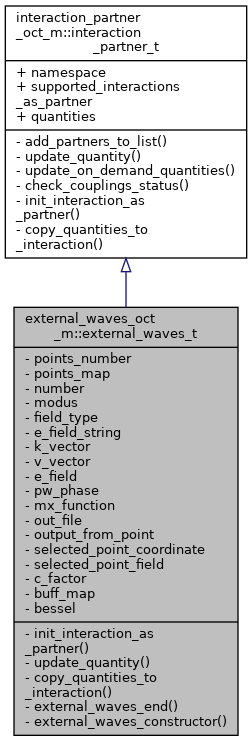

Inheritance diagram for external_waves_oct_m::external_waves_t:

Private Member Functions
procedure	init_interaction_as_partner => external_waves_init_interaction_as_partner

procedure	update_quantity => external_waves_update_quantity

procedure	copy_quantities_to_interaction => external_waves_copy_quantities_to_interaction

final	external_waves_end

class(external_waves_t) function, pointer	external_waves_constructor (namespace)

Private Attributes
integer	points_number
	number of points of plane wave boundary More...

integer, dimension(:), allocatable	points_map
	points map for plane waves boundary More...

integer	number
	number of plane waves given by user More...

integer, dimension(:), allocatable	modus
	modus can be plane_wave_parser, plane_wave_mx_function or bessel beam (see MAXWELLINCIDENTWAVES) More...

integer, dimension(:), allocatable	field_type
	type of external field : Electric Field or Vector Potential More...

character(len=1024), dimension(:,:), allocatable	e_field_string
	string in case of parser More...

real(real64), dimension(:,:), allocatable	k_vector
	k vector for each plane wave More...

real(real64), dimension(:,:), allocatable	v_vector
	velocity vector for each plane wave More...

complex(real64), dimension(:,:), allocatable	e_field
	field amplitude for each plane wave More...

real(real64), dimension(:), allocatable	pw_phase
	phase for mxf expression More...

type(mxf_t), dimension(:), allocatable	mx_function
	Maxwell function for each plane wave. More...

integer	out_file
	file descriptor for output at point More...

logical	output_from_point = .false.
	if output at a specific point should be done More...

real(real64), dimension(:), allocatable	selected_point_coordinate
	selected point for output More...

real(real64), dimension(:), allocatable	selected_point_field
	EM field at the selected point for output. More...

real(real64)	c_factor
	speed of light factor, documented in hamiltonian_mxll.F90 More...

type(accel_mem_t)	buff_map
	map of points stored on the GPU More...

type(bessel_beam_t)	bessel
	instance of the bessel_beam type More...

Additional Inherited Members
Public Attributes inherited from interaction_partner_oct_m::interaction_partner_t
type(namespace_t), public	namespace

integer, dimension(:), allocatable, public	supported_interactions_as_partner
	list of interactions, which support this interaction_partner_t as partner More...

type(quantity_t), dimension(max_quantities), public	quantities
	Array of all possible quantities. The elements of the array are accessed using the quantity`s identifiers. More...

Member Function/Subroutine Documentation

◆ init_interaction_as_partner()

procedure external_waves_oct_m::external_waves_t::init_interaction_as_partner

private

Definition at line 202 of file external_waves.F90.

◆ update_quantity()

procedure external_waves_oct_m::external_waves_t::update_quantity

private

Definition at line 203 of file external_waves.F90.

◆ copy_quantities_to_interaction()

procedure external_waves_oct_m::external_waves_t::copy_quantities_to_interaction

private

Definition at line 204 of file external_waves.F90.

◆ external_waves_end()

final external_waves_oct_m::external_waves_t::external_waves_end

finalprivate

Definition at line 205 of file external_waves.F90.

◆ external_waves_constructor()

class(external_waves_t) function, pointer external_waves_oct_m::external_waves_t::external_waves_constructor ( type(namespace_t), intent(in) namespace )

private

Definition at line 214 of file external_waves.F90.

Member Data Documentation

◆ points_number

integer external_waves_oct_m::external_waves_t::points_number

private

number of points of plane wave boundary

Definition at line 183 of file external_waves.F90.

◆ points_map

integer, dimension(:), allocatable external_waves_oct_m::external_waves_t::points_map

private

points map for plane waves boundary

Definition at line 184 of file external_waves.F90.

◆ number

integer external_waves_oct_m::external_waves_t::number

private

number of plane waves given by user

Definition at line 185 of file external_waves.F90.

◆ modus

integer, dimension(:), allocatable external_waves_oct_m::external_waves_t::modus

private

modus can be plane_wave_parser, plane_wave_mx_function or bessel beam (see MAXWELLINCIDENTWAVES)

Definition at line 186 of file external_waves.F90.

◆ field_type

integer, dimension(:), allocatable external_waves_oct_m::external_waves_t::field_type

private

type of external field : Electric Field or Vector Potential

Definition at line 187 of file external_waves.F90.

◆ e_field_string

character(len=1024), dimension(:,:), allocatable external_waves_oct_m::external_waves_t::e_field_string

private

string in case of parser

Definition at line 188 of file external_waves.F90.

◆ k_vector

real(real64), dimension(:,:), allocatable external_waves_oct_m::external_waves_t::k_vector

private

k vector for each plane wave

Definition at line 189 of file external_waves.F90.

◆ v_vector

real(real64), dimension(:,:), allocatable external_waves_oct_m::external_waves_t::v_vector

private

velocity vector for each plane wave

Definition at line 190 of file external_waves.F90.

◆ e_field

complex(real64), dimension(:,:), allocatable external_waves_oct_m::external_waves_t::e_field

private

field amplitude for each plane wave

Definition at line 191 of file external_waves.F90.

◆ pw_phase

real(real64), dimension(:), allocatable external_waves_oct_m::external_waves_t::pw_phase

private

phase for mxf expression

Definition at line 192 of file external_waves.F90.

◆ mx_function

type(mxf_t), dimension(:), allocatable external_waves_oct_m::external_waves_t::mx_function

private

Maxwell function for each plane wave.

Definition at line 193 of file external_waves.F90.

◆ out_file

integer external_waves_oct_m::external_waves_t::out_file

private

file descriptor for output at point

Definition at line 194 of file external_waves.F90.

◆ output_from_point

logical external_waves_oct_m::external_waves_t::output_from_point = .false.

private

if output at a specific point should be done

Definition at line 195 of file external_waves.F90.

◆ selected_point_coordinate

real(real64), dimension(:), allocatable external_waves_oct_m::external_waves_t::selected_point_coordinate

private

selected point for output

Definition at line 196 of file external_waves.F90.

◆ selected_point_field

real(real64), dimension(:), allocatable external_waves_oct_m::external_waves_t::selected_point_field

private

EM field at the selected point for output.

Definition at line 197 of file external_waves.F90.

◆ c_factor

real(real64) external_waves_oct_m::external_waves_t::c_factor

private

speed of light factor, documented in hamiltonian_mxll.F90

Definition at line 198 of file external_waves.F90.

◆ buff_map

type(accel_mem_t) external_waves_oct_m::external_waves_t::buff_map

private

map of points stored on the GPU

Definition at line 199 of file external_waves.F90.

◆ bessel

type(bessel_beam_t) external_waves_oct_m::external_waves_t::bessel

private

instance of the bessel_beam type

Definition at line 200 of file external_waves.F90.

The documentation for this interface was generated from the following file:

maxwell/external_waves.F90
