class for a neutral classical particle More...

Detailed Description

class for a neutral classical particle

Definition at line 150 of file classical_particle.F90.

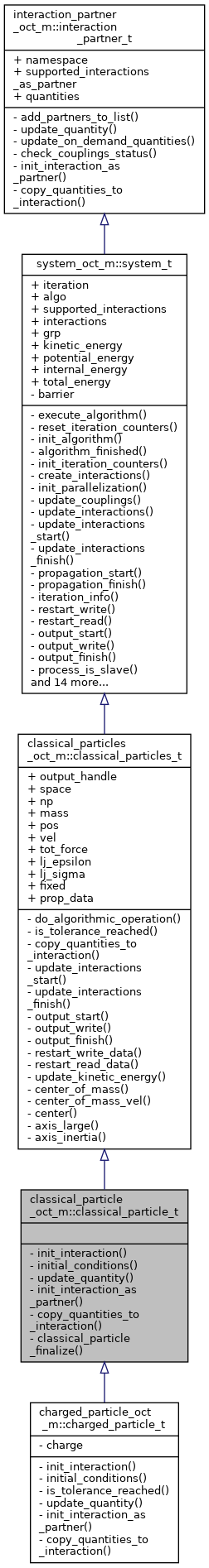

Inheritance diagram for classical_particle_oct_m::classical_particle_t:

Private Member Functions
procedure	init_interaction => classical_particle_init_interaction

procedure	initial_conditions => classical_particle_initial_conditions

procedure	update_quantity => classical_particle_update_quantity

procedure	init_interaction_as_partner => classical_particle_init_interaction_as_partner

procedure	copy_quantities_to_interaction => classical_particle_copy_quantities_to_interaction

final	classical_particle_finalize

Additional Inherited Members
Public Attributes inherited from classical_particles_oct_m::classical_particles_t
type(c_ptr), dimension(2), public	output_handle

type(space_t), public	space
	Dimensions of physical space. More...

integer, public	np
	Number of particles in the system. More...

real(real64), dimension(:), allocatable, public	mass
	Mass of the particles. More...

real(real64), dimension(:,:), allocatable, public	pos
	Position of the particles. More...

real(real64), dimension(:,:), allocatable, public	vel
	Velocity of the particles. More...

real(real64), dimension(:,:), allocatable, public	tot_force
	Total force acting on each particle. More...

real(real64), dimension(:), allocatable, public	lj_epsilon
	Lennard-Jones epsilon. More...

real(real64), dimension(:), allocatable, public	lj_sigma
	Lennard-Jones sigma. More...

logical, dimension(:), allocatable, public	fixed
	True if a giving particle is to be kept fixed during a propagation. The default is to let the particles move. More...

type(propagator_data_t), public	prop_data

Public Attributes inherited from system_oct_m::system_t
type(iteration_counter_t), public	iteration

class(algorithm_t), pointer, public	algo => null()

integer, dimension(:), allocatable, public	supported_interactions

type(interaction_list_t), public	interactions
	List with all the interactions of this system. More...

type(mpi_grp_t), public	grp
	mpi group for this system More...

real(real64), public	kinetic_energy
	Energy not from interactions, like the kinetic energy. More...

real(real64), public	potential_energy
	Energy from the interactions with external systems. More...

real(real64), public	internal_energy
	Energy from the interactions with itself and for containers the kinetic energy of its constituents. More...

real(real64), public	total_energy
	Sum of internal, external, and self energy. More...

Public Attributes inherited from interaction_partner_oct_m::interaction_partner_t
type(namespace_t), public	namespace

integer, dimension(:), allocatable, public	supported_interactions_as_partner
	list of interactions, which support this interaction_partner_t as partner More...

type(quantity_t), dimension(max_quantities), public	quantities
	Array of all possible quantities. The elements of the array are accessed using the quantity`s identifiers. More...
